Features:
Optimal Wavelength: Operates in the 450–465 nm blue light range, proven most effective for bilirubin breakdown.
High Irradiance: Delivers >45 μW/cm²/nm in high mode and >22 μW/cm²/nm in low mode, enabling flexible treatment levels.
Five Irradiance Levels: Adjustable intensity to meet each infant’s clinical needs.
Uniform Light Distribution: Ensures maximum skin exposure and efficient therapy.
Smart Distance Sensor: Automatically adjusts intensity based on distance.
Integrated Irradiance Meter: Allows accurate monitoring of light reaching the infant.
Dual Operation Modes:Timer Mode – Operates for a selected duration and set intensity.
Distance Mode – Guarantees constant lux intensity at a defined distance.
Touchscreen Display: 4-inch LCD for easy and precise control.
Centering Red Light: Red laser LED ensures exact infant positioning.
Long-Lasting LEDs: Up to 50,000 working hours for cost-effective operation.
Low Noise & Safety: Very quiet at 22.4 dB(A), with thermal protection and visual alarms
Specifications:
| Category | Details |
| Wavelength Range | 450–465 nm (Blue LED) |
| Irradiance | High Mode: >45 μW/cm²/nm Low Mode: >22 μW/cm²/nm |
| Irradiance Levels | 5 adjustable levels |
| Light Source | 12 LEDs, Blue-Light |
| LED Lifetime | 50,000 working hours |
| Display | 4-inch LCD touch screen |
| Working Area | 60 × 30 cm at 35 cm distance |
| Positioning Aid | Red laser LED pointer |
| Sensors | Distance sensor & irradiance probe port |
| Data & Connectivity | USB mini port, RS-232 communication port, service/export port |
| Alarms | Visual red LED (high temp/hardware error) |
| Noise Level | 22.4 dB(A) |
| Power Supply | 100–240V, 50–60 Hz |
| Power Consumption | 60 W |
| Environmental Conditions | Temp: +5°C to +40°C Humidity: 15%–95% RH (non-condensing) Pressure: 700–1060 hPa |
| Physical Dimensions | LED Unit: 43 × 25 × 10 cm Trolley Height: 112–160 cm (adjustable) Trolley Base: 57 × 47 cm |
| Materials | Anti-corrosion trolley material |
| Weight | LED Unit: 2.5 kg Total: 12 kg |
| Regulatory Standards | IEC 60601-1, IEC 60601-1-2, IEC 60601-2-50 |

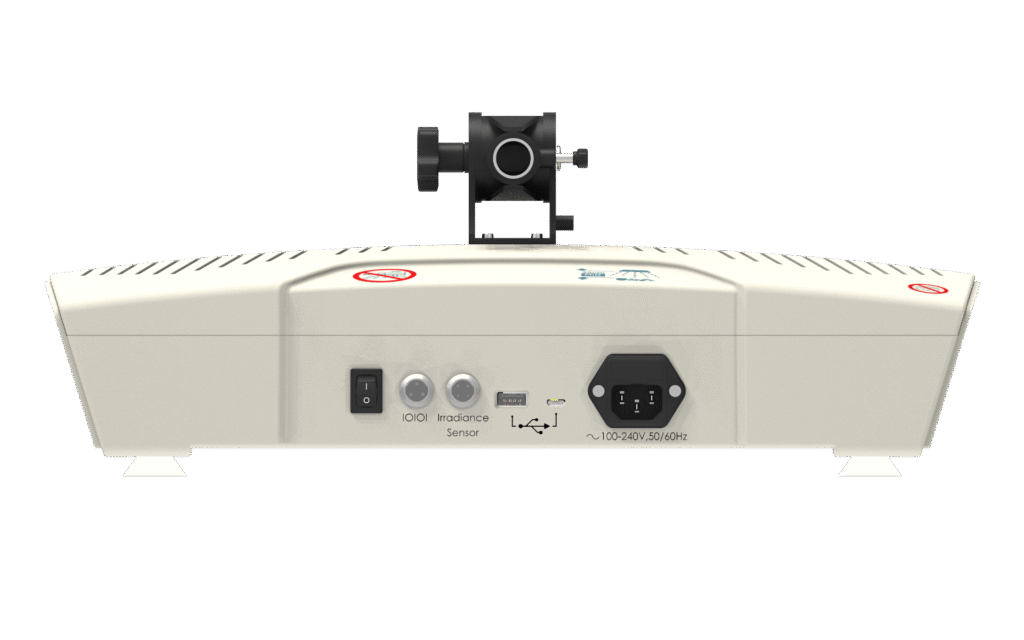

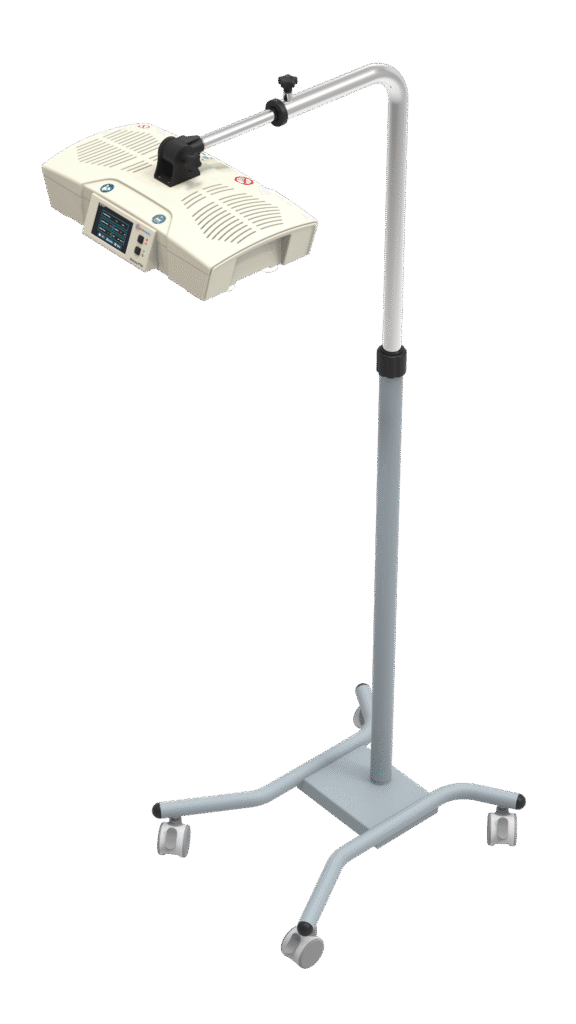

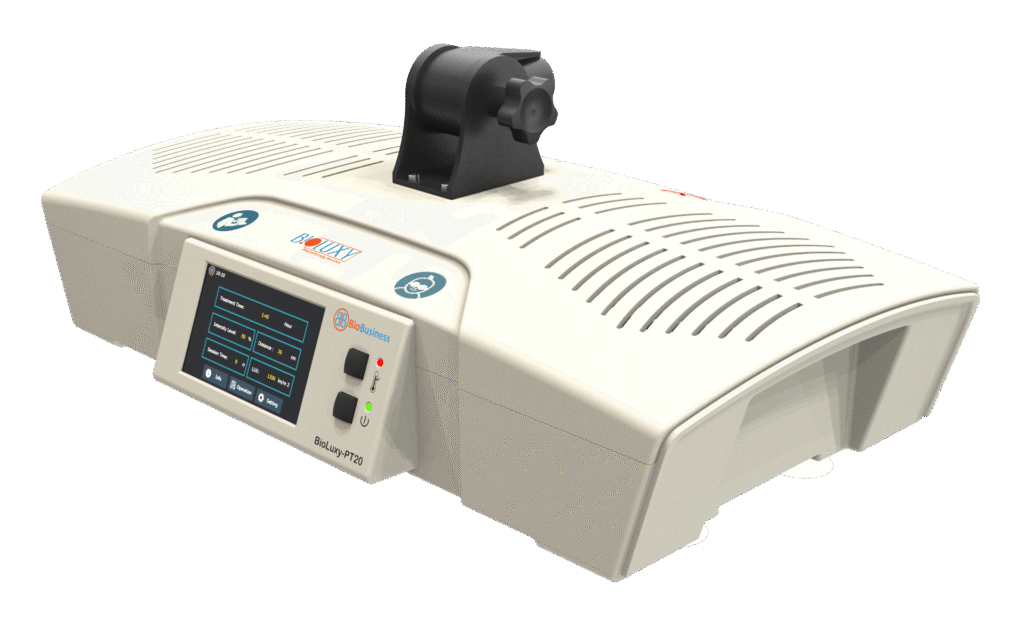

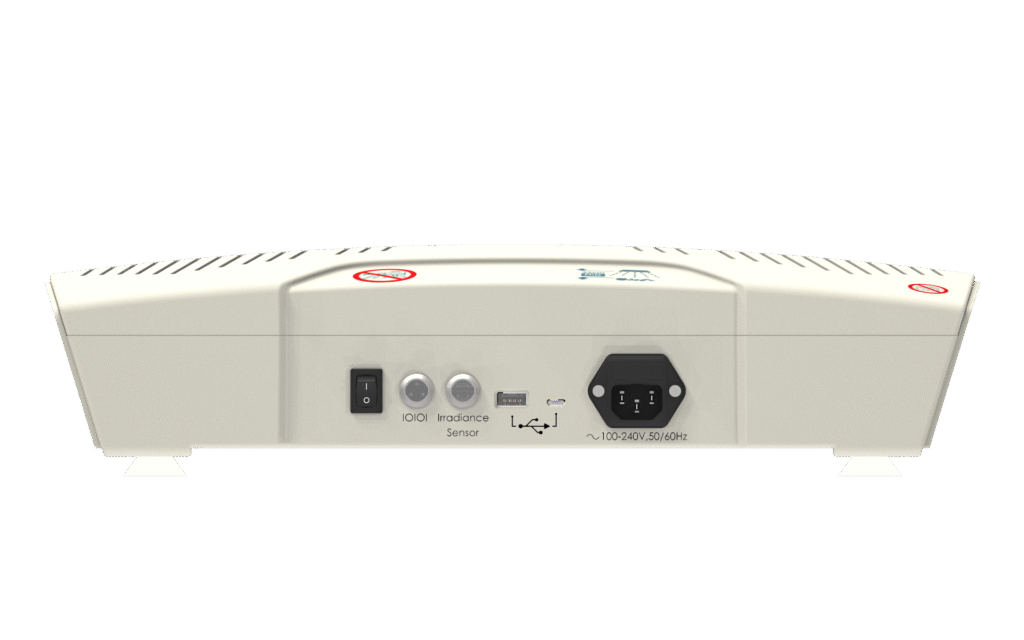

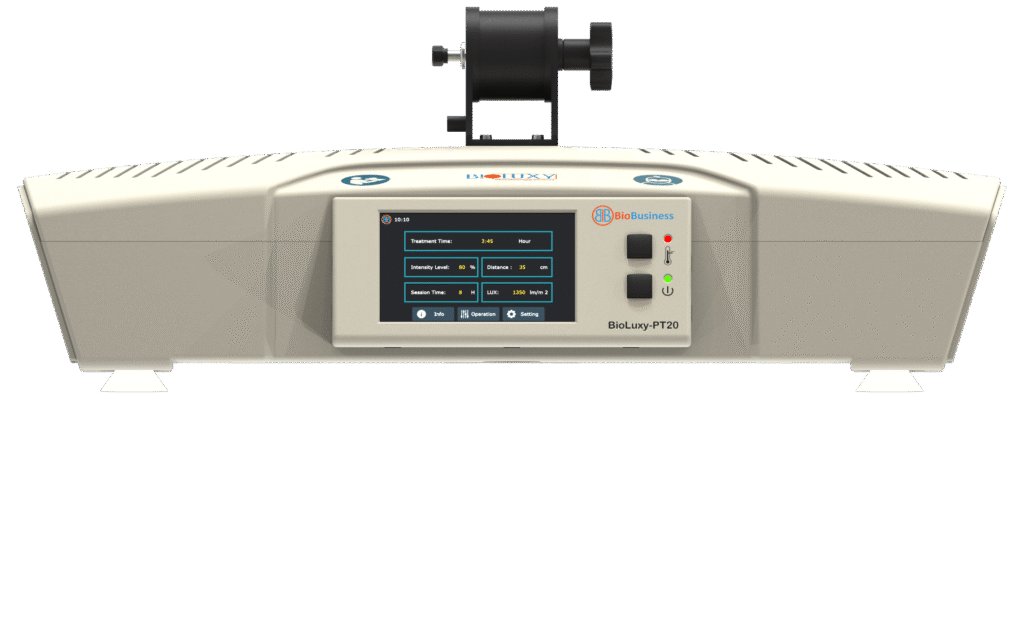

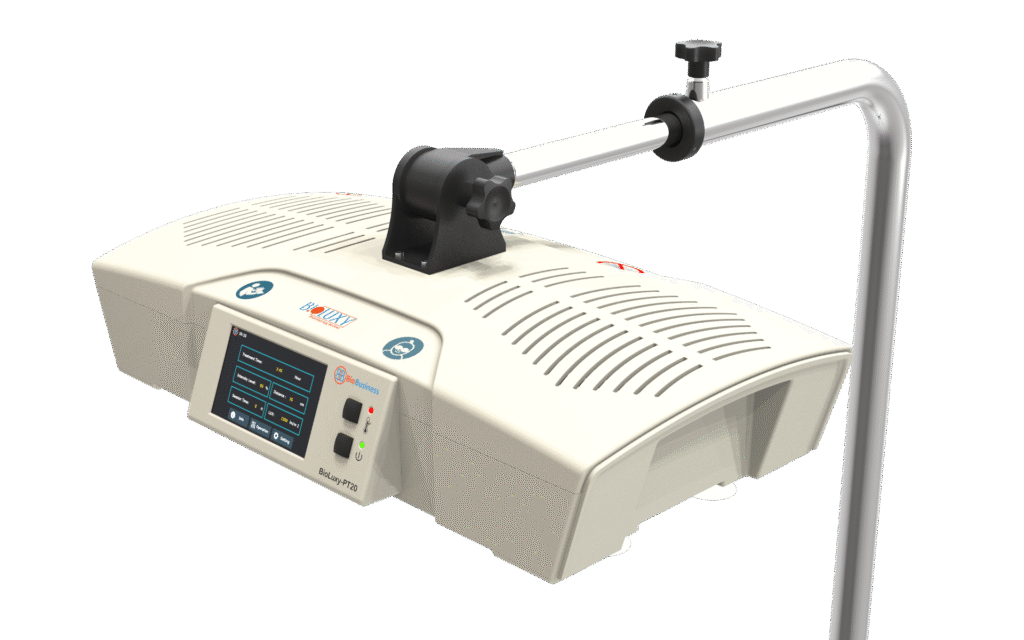

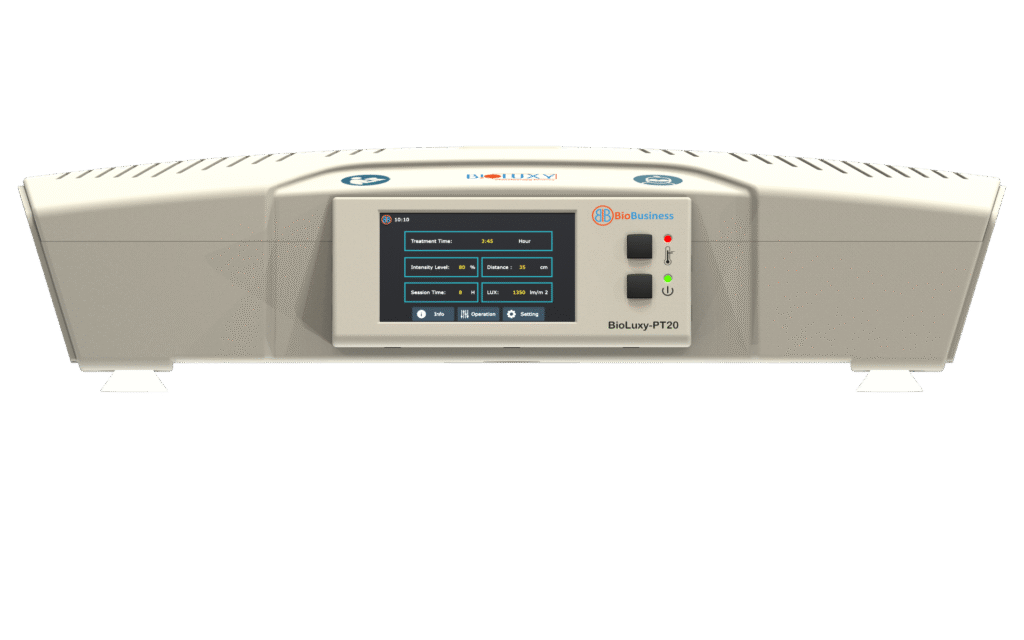

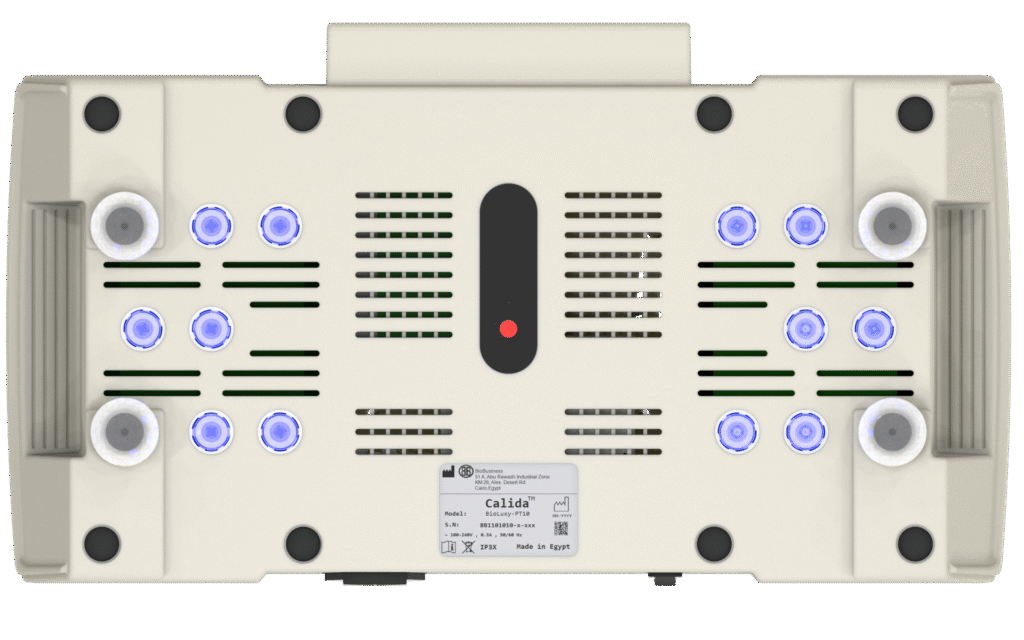

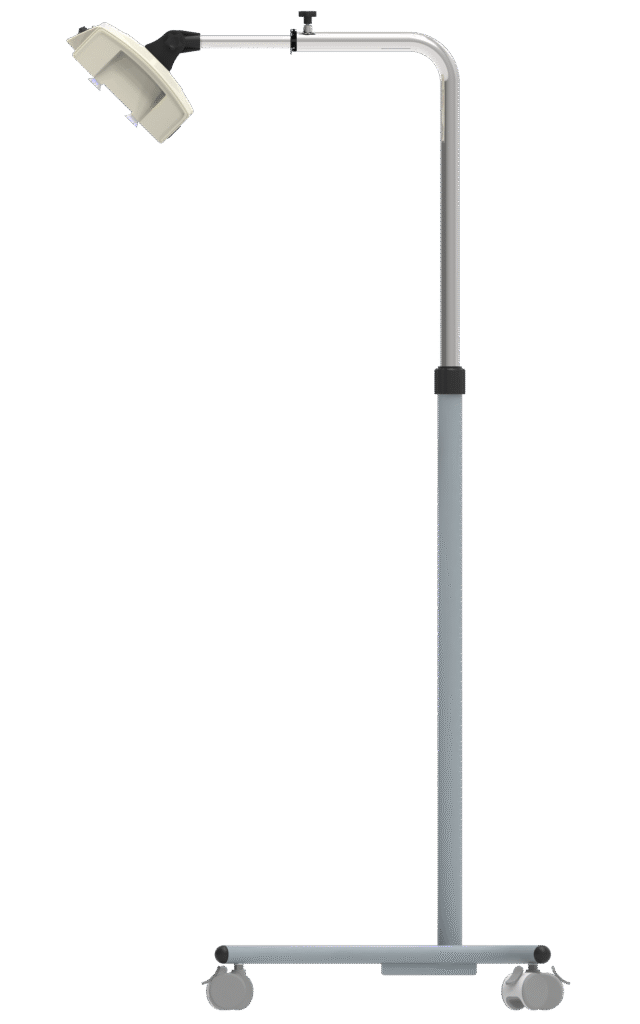

BioLUXY PT20 Pictures
